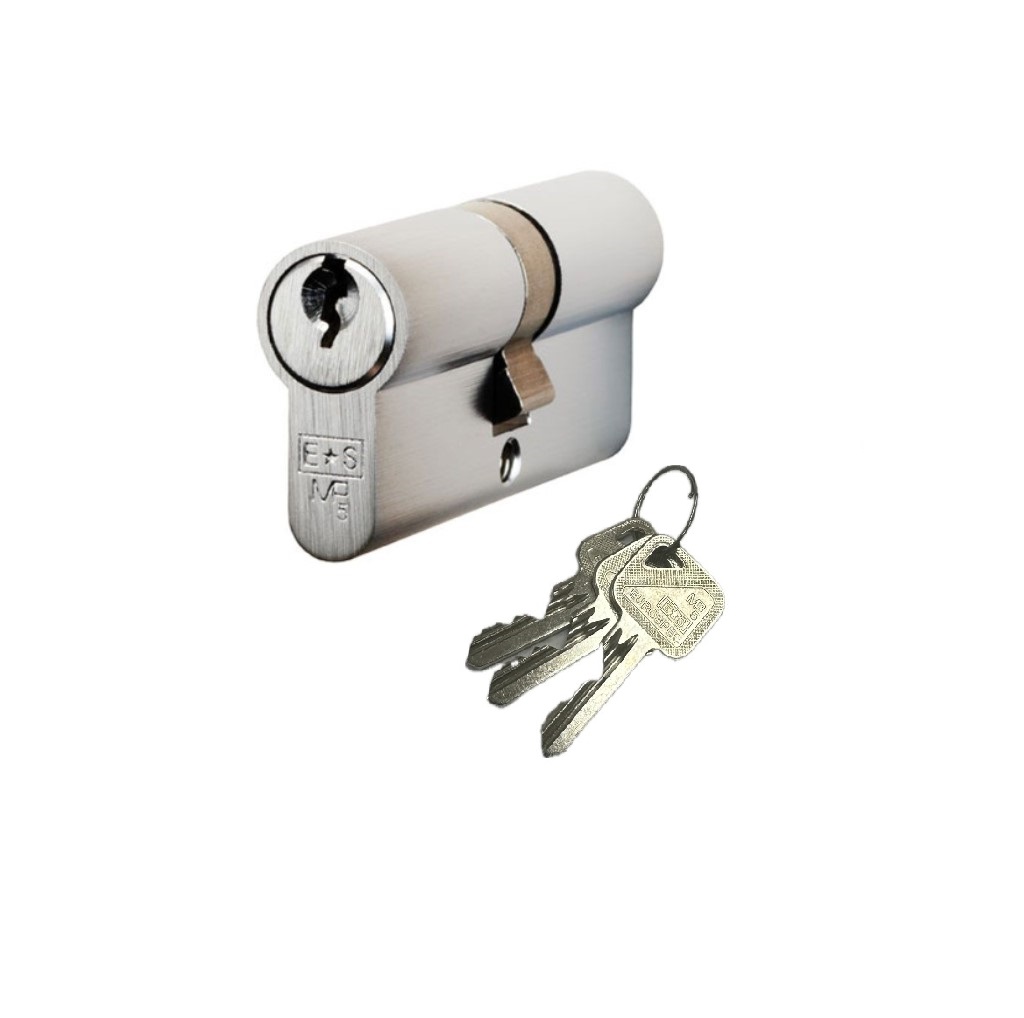

Eurospec MPX6 1 Star 6 Pin Euro Double Cylinder 40/45mm (85mm) - Master Keyed - Polished Chrome
No reviews yet · Be the first to reviewThe Eurospec MPx6 85mm euro double cylinder is a 6 pin, 1 Star rated cylinder that is key operated from both sides of the door. It measures 85mm overall, 40mm and 45mm either side of the cam centre, with a standard euro profile 17mm in diameter and…
Finish: polished chrome
Need help choosing? 0330 390 4377 · Message us
Product Details
- Eurospec MPx6 6 pin euro double cylinder, 85mm overall (40/45mm)
- Master keyed for use in a master key suite; keeps its kitemark status
- BS Kitemarked KM 585549 and TS 007:2014 + A2:2018 1 Star rated
- Anti-pick, anti-bump, anti-drill and anti-plug pull
- 5 year mechanical guarantee
- FD30/60 rated (Cylinder Brochure 2022)
- Polished Chrome finish, sold individually
The Eurospec MPx6 85mm euro double cylinder is a 6 pin, 1 Star rated cylinder that is key operated from both sides of the door. It measures 85mm overall, 40mm and 45mm either side of the cam centre, with a standard euro profile 17mm in diameter and 33mm high. It is master keyed, so it can be set up within a master key suite of up to 1,000 doors and still keeps its kitemark status.
It is BS Kitemarked (KM 585549), certified to BS EN 1303 and rated 1 Star to TS 007:2014 + A2:2018, with anti-pick, anti-bump, anti-drill and anti-plug pull protection. Three nickel silver keys are supplied, and it carries a 5 year mechanical guarantee.
Features
- BS EN 1303 cylinder security grade 2 (maximum grade) and key security grade 5
- Anti-pick, anti-bump, anti-drill, anti-plug pull and anti-twist, with a break-off system
- Internal hardened steel pins
- 3 nickel silver keys with an extended neck for use with security escutcheons
- Master keying for systems up to 1,000 doors; master keyed cylinders retain the kitemark
- Secured by Design; FD30/60 fire rating shown in the Cylinder Brochure 2022
Specification
| Range | Eurospec MPx6 |
| Type | 6 pin euro double cylinder |
| Overall length | 85mm |
| Either side of cam | 40mm / 45mm |
| Profile | Euro, 17mm diameter x 33mm high |
| Keying | Master keyed (MK) |
| Keys | 3 nickel silver keys |
| Standards | BS EN 1303 (1 6 B 0 C 0 5 D); TS 007:2014 + A2:2018 1 Star |
| Kitemark | KM 585549 |
| Guarantee | 5 year mechanical |
| Finish | Polished Chrome |
| Sold as | Each |
Also in this design
keyed alike version (CYF7424045); other master keyed double cylinder sizes: 35/40mm (75mm) (CYF7723540), 35/45mm (80mm) (CYF7723545), 35/50mm (85mm) (CYF7723550), 40/50mm (90mm) (CYF7724050), 40/60mm (100mm) (CYF7724060), 45/50mm (95mm) (CYF7724550), 45/55mm (100mm) (CYF7724555)
Matching accessories
AEB1750 2 Star security escutcheon (1 Star cylinder + 2 Star escutcheon = 3 Star security) · CYZ70004 M5x65mm fixing screw for profile cylinders · CYZ7800MNS MPx6 master key · CYZ78001NS MPx6 6 pin cylinder keyblank
| Finish | Polished Chrome |
|---|---|
| Style | 6 Pin Master Keyed |
| Type | Euro Double Offset |
| Brand | Eurospec |
| Size | 85mm |
| Unit | Each |
| Manufacturer Guarantee | 5 Year Mechanical |
| Size Options | CYF7723540PC,CYF7723545PC,CYF7723550PC,CYF7724050PC,CYF7724060PC,CYF7724550PC |
