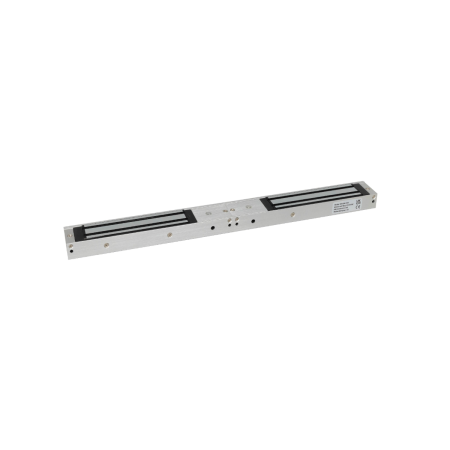

Zoo Hardware Double Slimline Mini Magnetic Lock - 600lbs (280kg x2) Holding Force - Fire Rated
No reviews yet · Be the first to reviewThe Zoo Hardware double slimline mini magnetic lock gives 600lbs (280kg x2) holding force for securing double doors (one magnet per leaf) in access control systems. Its slimline aluminium housing suits narrow frames and doors where a standard…
Finish: red
Need help choosing? 0330 390 4377 · Message us
Product Details
- Zoo Hardware double slimline mini magnetic lock - 600lbs (280kg x2) holding force
- Fire rated for 30, 60, 90 & 120 min timber door sets
- Slimline housing for narrow frames
- Fail safe, dual voltage 12/24 VDC
- Surface mount
- Sold as each
The Zoo Hardware double slimline mini magnetic lock gives 600lbs (280kg x2) holding force for securing double doors (one magnet per leaf) in access control systems. Its slimline aluminium housing suits narrow frames and doors where a standard maglock would be too bulky, and it is used with keypads, readers and exit buttons. It is fire rated.
It runs on dual voltage 12/24 VDC and is fail safe, locking when powered and releasing when power is removed. It is fire rated for 30, 60, 90 & 120 min timber door sets, fitted with the AH600 armature housing on fire doors.
Features
- 280kg (600lb) holding force x2
- Fire rated: 30, 60, 90 & 120 min door sets
- Slimline mini magnet
- Fail safe - power to lock
- Dual voltage 12/24 VDC
- Power LED (red)
Specification
| Code | ML600-D |
| Type | Double slimline mini magnetic lock |
| Holding force | 600lbs (280kg x2) |
| Housing | Aluminium |
| Power | Dual voltage 12/24 VDC @ 480/240mA x 2 |
| Voltage tolerance | +/- 15% |
| Operation | Fail safe (power to lock) |
| Mounting | Surface mount |
| Operating temperature | -10° to +50° |
| Maglock | 500x42x25 (mm) |
| Armature | 180x38x13 (mm) x 2 |
| Weight | 3.94kg boxed / 2.26kg unboxed |
| Indication | Power LED (red) |
| Fire rating | Fire tested to BSEN1634-1-2014 & BS476:Part22:1987 (30, 60, 90 & 120 min timber door-sets) |
| Fire doors | AH600 armature housing required x 2 |
| Supplied with | Double slim line mini magnet, armature plate x 2, 600GB fixing kit x 2, instructions, armature fixing template |
| Sold as | Each |
